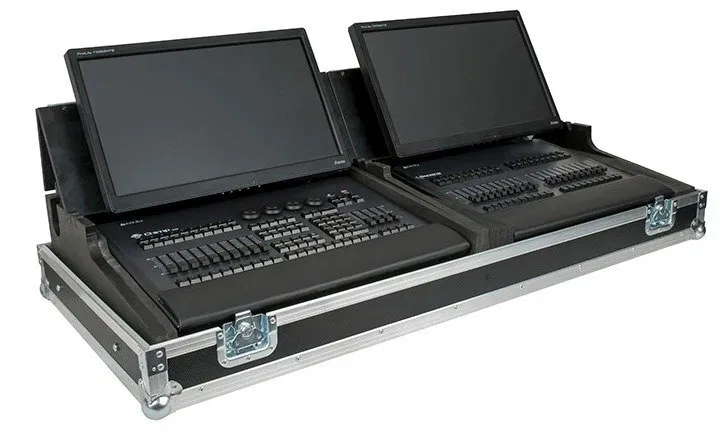

CARACTÉRISTIQUES D’CHIMP TOUR PACK
FEATURES
• Familiar keys, numeric keypad and 4 Encoders
• 30 Playback faders with Go, Pause/Reverse, Flash keys on multiple pages
• 30 Executer/Flash keys on multiple pages
• Color picker, Swatchbook by Lee, Rosco and Apollo Filters
• Gobo Picker
• User definable groups and presets
• User definable display layout
• User definable master faders
• Effects engine
• Fan functions on all attributes
• Altabase Fixture library and Fixture builder
CONNECTORS
• 4 x DMX 5-pin opto-isolated in/outs (RDM ready)
• Ethernet/Artnet
• 2x HDMI monitor out
• Midi In/Thru/Out 5-pin DIN
• Audio Input 3-pin XLR
• IEC Power Supply Input
• 2 x Dimmable Desklight outputs 3-pin XLR
• 4 x USB-A connectors
SOFTWARE
• 4 universe 2048 channels DMX
• 200 Fixtures
• 5000 memories
• 600 memory stacks
• 100 groups
• 9 x 100 presets (position, color, beam, effects, etc.)
• Command line interface
• Output visualizer
• Libraries provided by AtlaBase Ltd (> 17.500 fixtures)
• Tracking and non-tracking options
Flightcase Dimensions
• Dimensions: 1290 x 630 x 320mm
• Weight: 70Kg
